The PLG-type level trombone crew

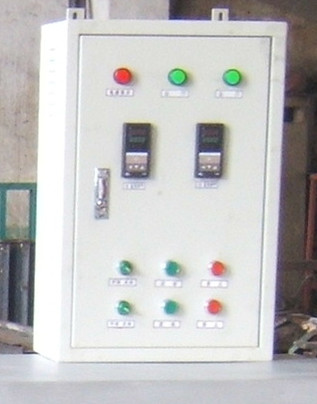

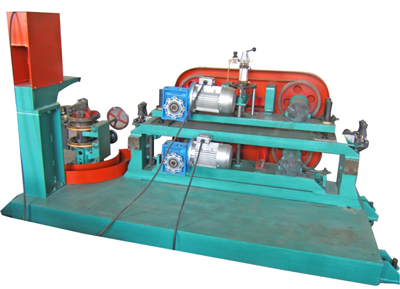

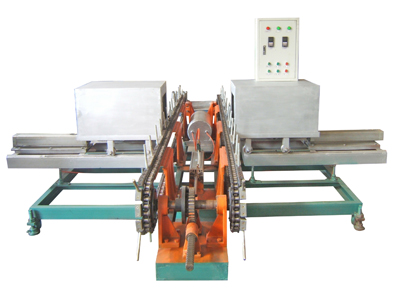

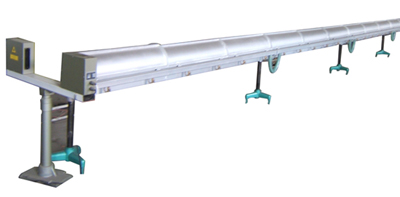

This machine is suitable to pull the pharmaceutical packaging glass tube, electric light source glass tube, solar glass tubes, glass rods, etc.. Trombone It brings together domestic and foreign advanced technology, vertical drawing horizontal traction, frequency control, automatic diameter measurement, automatic cutting, automatic sorting and other production processes. The unit consists of a vacuum runway auxiliary runway, traction machine, pipe cutting machine, flap institutions, laser measurement and control, electrical control.

The main parameters

    Drawn glass tube specifications:

     Ф5 ~ 72mm in diameter

     Wall thickness 0.5 ~ 2mm

     Length 800 ~ 3000mm

    2. Automatically cutting the length of error of ± 3mm

    3. Laguan-speed 20 ~ 50m/min

    4. Traction wheel angle adjustment range of ± 2 °

    Sorting board flip speed 120 times / min

    6 laser diameter range

       Single optical path Ф2 ~ 45mm

       Dual optical path Ф44 ~ 120mm

    7. Pinch roller pressure adjustment range 0 ~ 0.3MPa

    8 power (three phase) 380V ± 10%

    Power 2.57KW 9.

   10 gas source 0.3MPa

   11 water tap

   12 tractor Dimensions 2400x1200x1800mm

   13 tractor weight 2000Kg
