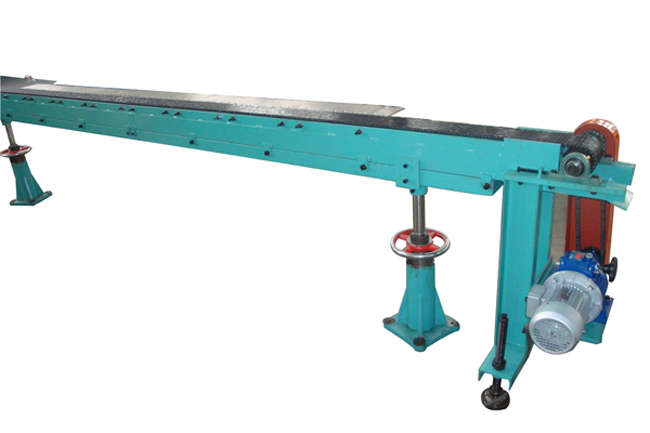

EC type tooth chain horizontal conveyor

       This machine is used for lateral feed of the the annealing furnace front glass products, with products in a timely manner, smoothly delivered annealing furnace and push bottle machine, the machine uses a continuously variable transmission, or worm gearbox (plus inverter) and silent chain, its structure reasonable, reliable performance. Has a wide range of speed, smooth running, deviation, non-slip characteristics applicable to a variety of specifications annealing furnace.

  The main parameters:

Transporting glass products diameter: ≤ Φ110mm

Conveyor speed: 3 ~ 24m/min

Conveyor height: 930 ~ 1100mm

Conveyor belt width: 125mm

Conveyor Belt pitch: 12.7mm

Nominal power: 0.75KW

Machine weight: ≈ 700Kg

Dimensions: (2000 + B) x500x930
