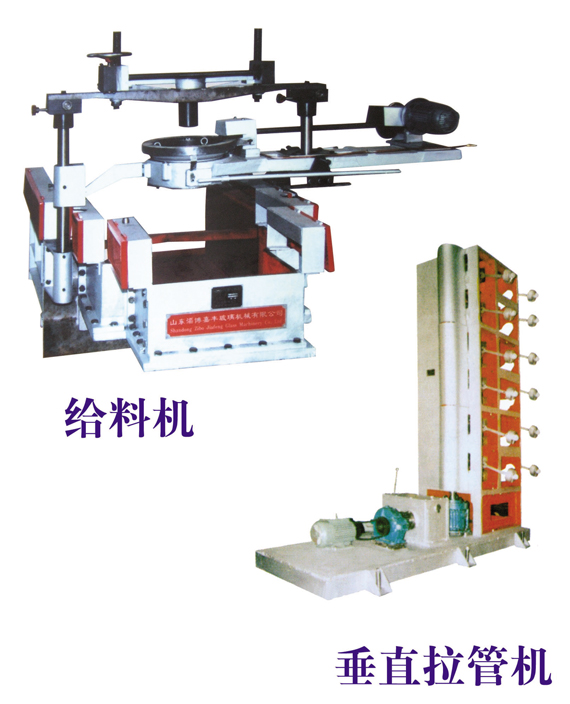

The vertical trombone machine of the CL series
The CL series vertical trombone machine apply to the drawing process glass tube, electro-optic glass tube, solar glass tubes, the various beakers with glass tube, and a variety of craft glass rod, etc.. It brings together domestic and foreign advanced the trombone technologies, vertical drawing, vertical traction, VVVF Production. The model transmission smooth, reliable, durable and easy to operate, the user may need to use.
|
Model |
Tube diameter mm |
Wall thickness mm |
Machine speed mm/min |
With motor KW |
The weight of the machine T |
|
CL-1 |
30-150 |
0.5-5 |
300-20000 |
3.0 |
2.80 |
|
CL-2 |
30-300 |
0.5-10 |
250-20000 |
3.0 |
3.80 |
|
CL-3 |
30-450 |
0.5-15 |
20-8000 |
4.0 |
20.0 |
|
|
|
|
|
|
|
Note: The type material feeder basin depth according to user requirements shallow deepen or change
CG series vertical feeder
CG Series feeder, equipped for a variety of vertical tube drawing machine, horizontal drawing machine. The change machine leveling barrel with a frequency converter control, can be both positive and negative operation, durable and easy to operate, the user may need to use.
The main technical parameters of the CL series feeder
|
Model |
Refiner motor KW |
Leveling barrel r/min |
Drip feeding center to mm |
Material basin deep mm |
Weight T |
|
CG180 |
0.75 |
0.5-8 |
250 |
200/230 |
1.5 |
|
CG200 |
0.75 |
0.5-8 |
250/460 |
200/270/320 |
2.0 |
|
CG220 |
0.75 |
0.5-8 |
250/460 |
270/320/420/520 |
2.4 |
|
|
|
|
|
|
|
Note: The type material feeder basin depth according to user requirements shallow deepen or change
