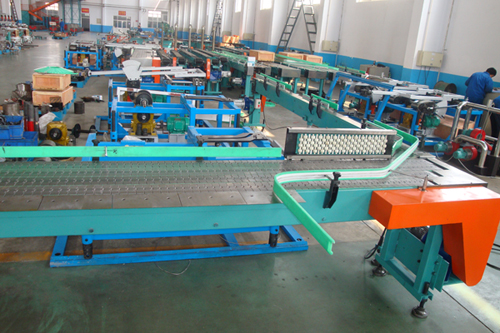

86 rows of bottles Machine
The machine is located in the the annealing furnace back-end, used to the mesh belt Bolipingguan of the annealing furnace in single file, continuous, smooth transport to the packing station, added testing equipment for quality control of the products in the course of transmission, and can also provide a light box for artificial inspection, applicable to a variety of specifications of the annealing furnace.
Description:
1. X863 three rows of chain form, X864, B864, Y864 are four rows of chain form 865 five rows of chain form of the form of 6-row chain, X866.
2. Y864 bend, transitional forms, the rest are transitional form of a disk.
3. X863, B864 and X866 installed the same arrangement of the X864 with 865 mounting arrangement of the same. .
4. Various models of a row of chain length size by the customer in accordance with the site-specific data.
Lightbox installation position according to user needs on-site installation.
The main technical parameters:
|
Technical parameters |
Range |
|
Suitable for the diameter of the glass products ｍｍ |
≤110 |
|
Conveyor chain speed m/min |
4～18 |
|
Conveyor chain width ｍｍ |
114.3 |
|
Machine height ｍｍ |
900～1050 |
|
Equipped with power Kw |
0.75*2/0.55 |
|
Row of bottles crew Specifications | |||||||||
|
Annealing furnace specifications |
1.2M |
1.5M |
1.8M |
2.1M |
2.4M |
2.7M |
3.0M |
3.3M |
3.6M |
|
The X863 type L length |
2.9M |
3.2M |
3.5M |
3.8M |
4.1M |
4.4M |
4.7M |
5.0M |
5.3M |
|
The X864 type L length |
4.2M |
4.5M |
4.8M |
5.1M |
5.4M |
5.7M |
6.0M |
6.3M |
6.6M |
|
The B864 type L length |
2.9M |
3.2M |
3.5M |
3.8M |
4.1M |
4.4M |
4.7M |
5.0M |
5.3M |
|
The Y864 type L length |
2.9M |
3.2M |
3.5M |
3.8M |
4.1M |
4.4M |
4.7M |
5.0M |
5.3M |
|
L length of the 865-type |
4.2M |
4.5M |
4.8M |
5.1M |
5.4M |
5.7M |
6.0M |
6.3M |
6.6M |
|
The X866 Type L length |
3.1M |
3.4M |
3.7M |
4.0M |
4.3M |
4.6M |
4.9M |
5.2M |
5.5M |

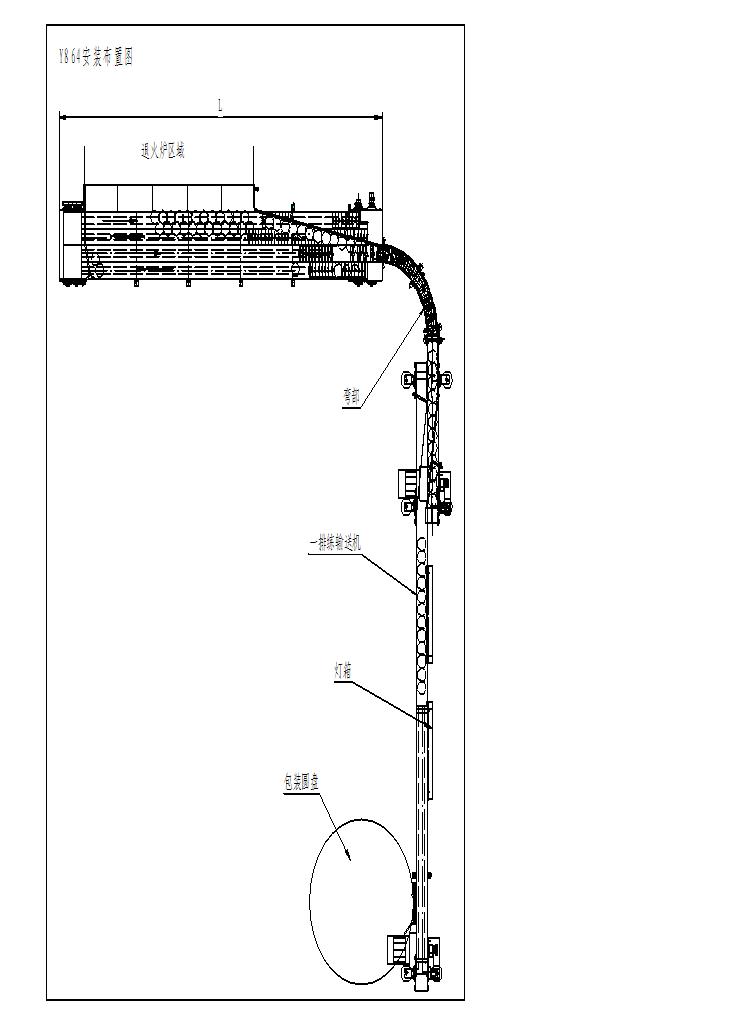

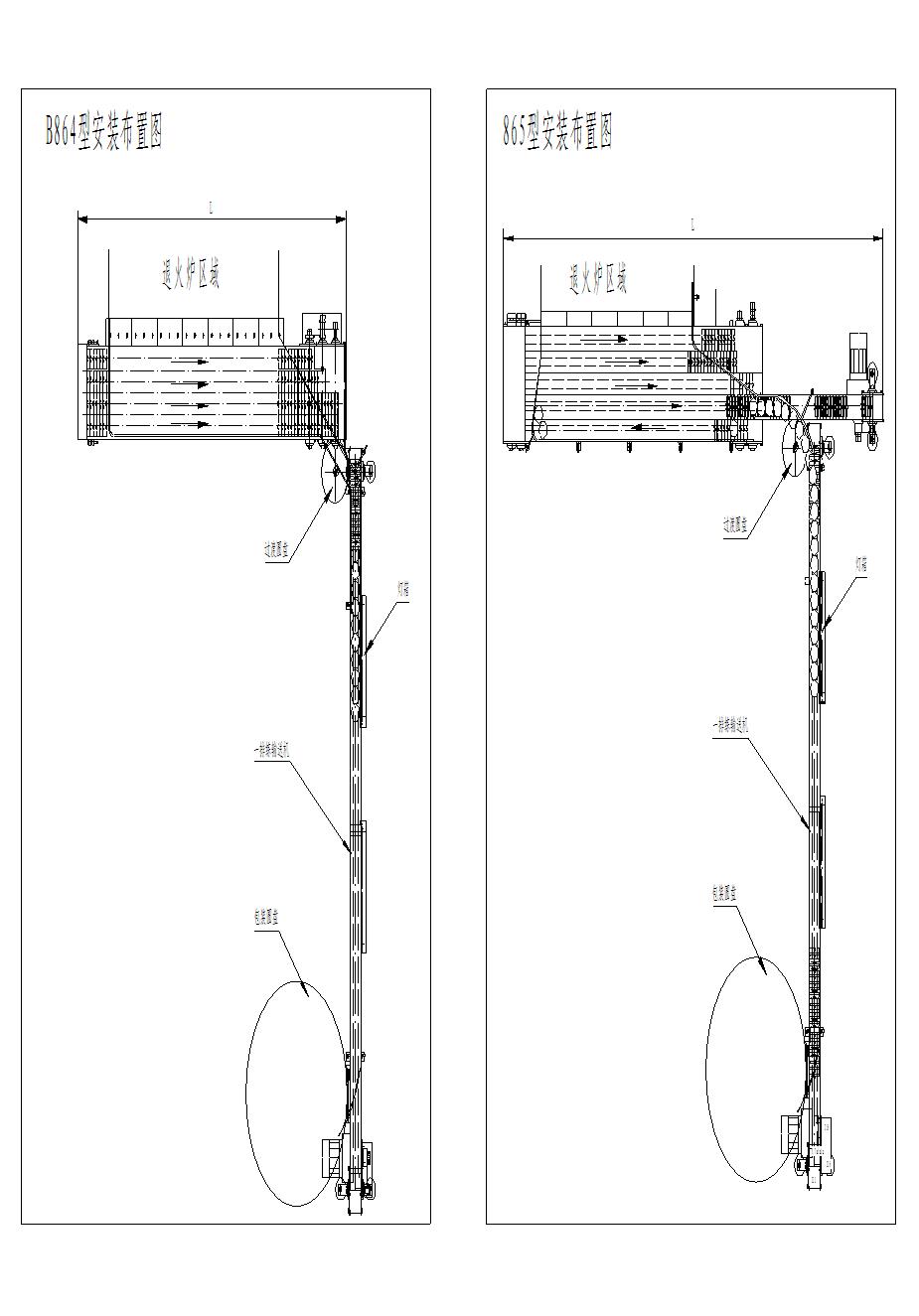

The machine is divided into X863, X864, X864, B864, 865, X866 six series, each model specification, installation layout and main technical parameters of the table below.
