ET intelligent push bottle machine

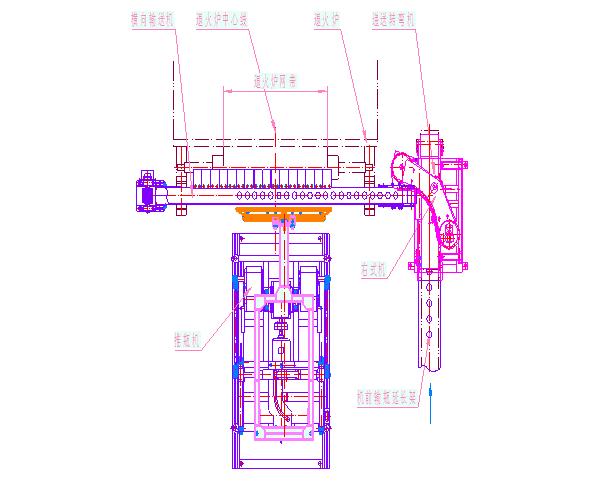

The machine is used for the bottle production line, which is installed in the annealing furnace at the entrance to the bottle from the horizontal bottle conveying machine quickly and accurately to push annealing furnace, it has a precise counting and timing functions, push the bottle speed control by inverter reliable, easy adjustment operation characteristics.
The main parameters:
Push the bottle stroke: 350mm
Putter adjust the height from the ground: 900 ~ 1100mm
Push the bottle speed: 1 to 15 beats / min
Motor power: 1.5KW
Tuitou length: 1.2m ~ 3.6m
Tuitou lift maximum height: 365mm
Machine Dimensions: L x W x H = 2000x1127x1130mm
Machine weight: 1200Kg
