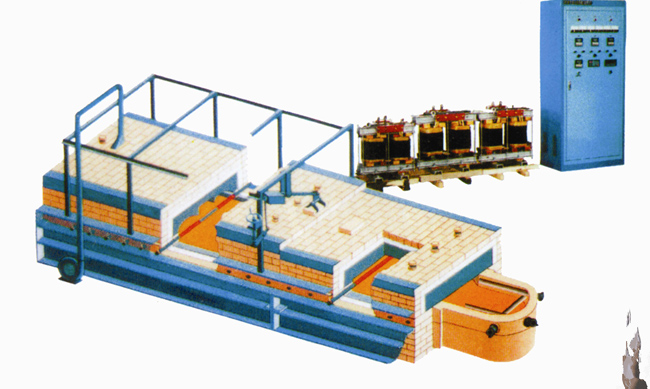

AF radiant electric heating Forehearth



AF radiant electric heating Forehearth

Forehearth the channel the glass liquid self furnace leading to the feeder, in the groove bricks above radiant heating silicon carbide, the cryogenic material on both sides of the Forehearth automatic heating, automatic cooling using longitudinal reduce the Central high temperature material liquid through "clipping" and "valley fill" off fabric liquid temperature uniformity, stability, and achieve solid to liquid uniform high quality molding.

  The series forehearth appropriate changes in length according to user needs

AF -type electric heating Forehearth

Model Specifications

The width of the groove brick

Forehearth length

Deep within the groove brick

Installed capacity

AF406X2630

406

(16 " )

2630

178

85 KW

AF406X3240

3240

85 KW

AF660X3240

660

(26 " )

3240

178

95 KW

AF660X4460

4460

95 KW

AF660X5070

5070

95 KW

AF910X5846

910

(36 " )

5846

178

125 KW

AF910X6456

6456

125 KW

AF910X7066

7066

125 KW
