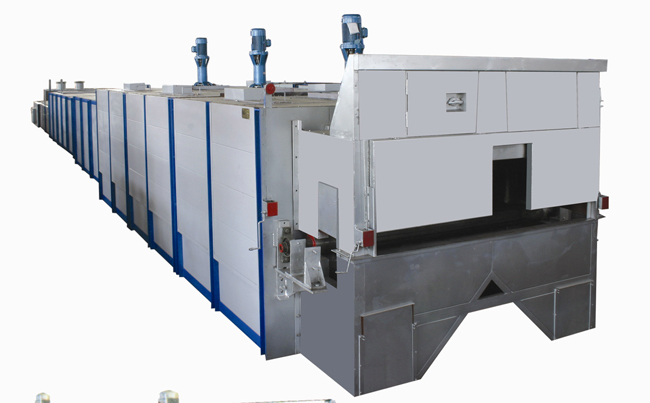

GLR -type electrically heated annealing furnace
The equipment for electric furnace filament thermal annealing furnace. The internal furnace heating zone for the double stainless steel, aluminum silicate fiber insulation, mesh belt for internal circulation and frequency control, furnace, hot air forced circulation automatic precise control of temperature paragraphs.With the advantages of energy-efficient, easy to operate.Applicable to the annealing treatment of the glass containers and pressed ware in continuous production . . Furnace for steel structure, block production, on-site installation. Increase or decrease the length of the series annealing furnace according to user needs.
GLR -type electrically heated annealing furnace
|
Specification Parameter |
GLR1.2 |
GLR1.5 |
GLR1.8 |
GLR2.1 |
GLR2.4 |
GLR2.7 |
GLR3.0 |
GLR3.3 |
GLR3.6 |
|
Mesh width (mm) |
1200 |
1500 |
1800 |
2100 |
2400 |
2700 |
3000 |
3300 |
3600 |
|
Reference to the supporting ranks models |
Two single |
Sidan |
Six single |
Six single |
Eight single |
Six pairs |
Eight pairs |
Sixty-three |
Sixty-three |
|
Total motor power (KW) |
12 |
12 |
12 |
12 |
17.2 |
17.2 |
21 |
21 |
21 |
|
The heater of total power (KW) |
162 |
216 |
216 |
216 |
270 |
297 |
297 |
324 |
351 |
|
Machine weight (T) |
25 |
28 |
31 |
34 |
37 |
40 |
43 |
46 |
49 |
|
Network to take the lead the tail roll center (mm) |
25000 | ||||||||
|
Highest annealing temperature º c |
630 | ||||||||
|
Mesh belt running speed m / min |
0.15-0.63 | ||||||||
|
Network with maximum load Kg / m² |
≤ 90 | ||||||||
|
Furnace height (mm) |
250 | ||||||||
|
400 | |||||||||
|
The highest annealing Products (mm) |
230 | ||||||||
|
380 | |||||||||
